The Sookook MF2 Renew is a burner controller suitable for draught burners using gas and oil fuel in civil and industrial applications with two – flame levels.
It has a power supply of 220V AC, 50 – 60 Hz and a power consumption of 6.5 VA. The pre – purge time is 35 seconds, and the safety time is 3 seconds. The operating temperature range is from – 10 °C to + 60 °C.

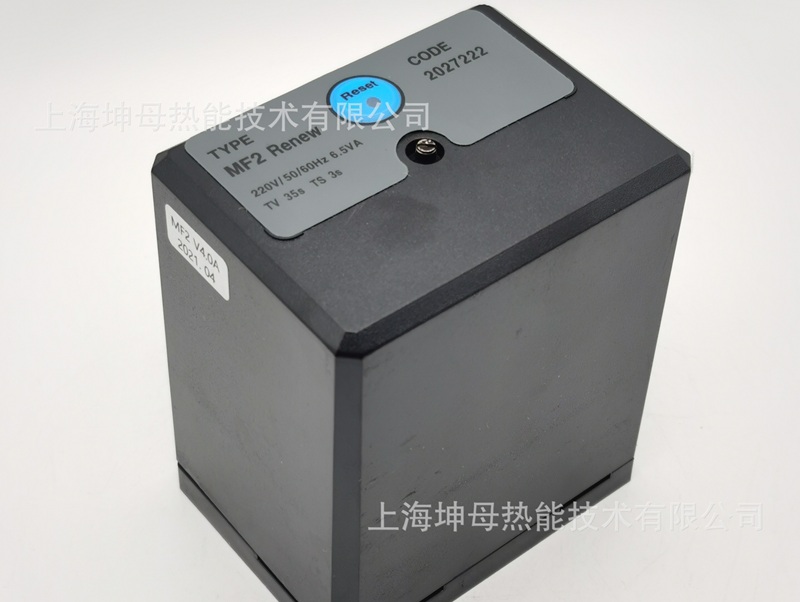

Sookook MF2 Renew burner controller
This controller can use either an ionization probe, which takes advantage of the rectification property of the flame, or a UV photo tube as the flame detection sensor. It is a reliable component for burner control, ensuring the safe and efficient operation of the burner.
FAQ-1: Can MF2 controller be used in different types of burners?
The Sookook MF2 Renew burner controller can be used in different types of burners within a certain range.
It is specifically designed for RIELLO (Riello) burners and is applicable to models in the GULLIVER series, such as RG2, RG3, RG4S, RG5S, RG2D, RG3D, RG4D, RG5D, etc. In addition, it is suitable for single – stage gas burners of the 40G5 series and PRESS series burners like GW, 1G, 2G, 3G, 4G, etc.
In general, the Sookook MF2 Renew burner controller is mainly used for forced – draught burners using gas and oil fuels in civil and industrial applications with two – flame levels. It can be used with burners that meet its technical requirements such as power supply, flame – sensing method, and operating temperature range.
