Saacke FLS 09 UV-5 R2 IP65 UV sensing flame detector

Description

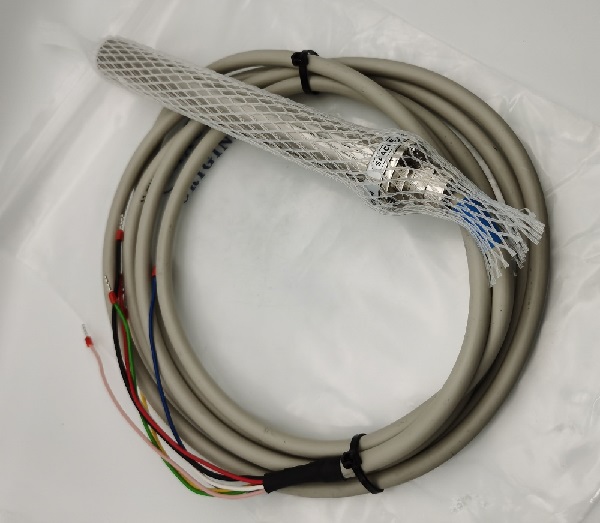

SAACKE FLS 09 UV-5 R2 UV-sensitive flame sensor for boiler combustion

The SAACKE FLS 09 UV – 5 R2 is a high – quality flame detector, which is mainly used to detect the ultraviolet (UV) light generated by the flame, it features:

• Item description: SAACKE FLS 09 UV – 5 R2 IP65 flame scanner sensor with the model number FLS 09.
• Features: It has high precision and reliability, and can accurately detect UV light, which is suitable for industrial applications with high – precision requirements. With an IP65 protection level, it can effectively prevent dust and water ingress, and is suitable for use in harsh environments.
• Performance Advantages: The detector adopts digital flame evaluation, which is suitable for the variable – type adjustment of all fuels. It has high safety, strong reliability, and can work continuously without the power limitation of the burner.
• Installation and Use: It is lightweight, weighing about 430 grams, and easy to install, which can be widely used in various single – burner or multi – burner devices.

FAQ

Q: What are the specific application fields of the SAACKE FLS 09 UV-5 R2 flame detector?

The SAACKE FLS 09 UV – 5 R2 flame detector is mainly applied in industrial combustion equipment and safety – critical scenarios, with the specific application fields as follows:

• Power Generation Industry: It can be used in the boilers of thermal power plants. By detecting the flame status, it ensures the stable operation of the boilers and timely discovers abnormal flame conditions to prevent safety accidents.
• Petrochemical Industry: Applied to heating furnaces in chemical plants, reforming furnaces in refineries, ethylene cracking furnaces, and chemical reaction furnaces. These devices are under high – temperature and high – pressure conditions, and the flame detector can monitor the flame in real time to ensure the normal progress of the reaction and prevent fire and explosion accidents caused by flame out or abnormal combustion.
• Metallurgical Industry: Used in blast furnaces in steel plants, non – ferrous metal smelting furnaces, and metal heat – treatment furnaces. In the metallurgical process, accurate control of the flame is crucial for the quality of metal products, and this detector can provide reliable flame detection.
• Waste Incineration and Biomass Energy Industry: Applicable to municipal solid waste incineration plants and biomass – energy power plants. It can monitor the combustion flame of waste or biomass to ensure efficient and stable combustion and avoid unburned or abnormal combustion conditions.
• Food and Pharmaceutical Industry: Used in food drying ovens, pharmaceutical sterilization ovens, and burner – supporting pharmaceutical reaction kettles. In the food and pharmaceutical production process, the stable operation of the equipment is of great significance to product quality, and the flame detector can ensure the normal operation of the combustion system.
• Building and Public Places: Installed in high – rise buildings, shopping malls, hospitals, subways, railway stations and other places. It is used for early fire detection, providing valuable time for personnel evacuation and fire – fighting, and ensuring the safety of personnel and property.
• Transportation Field: It can be installed on vehicles, ships, aircraft and other means of transportation to detect the flame in the engine compartment and other key parts, helping to timely discover fire hazards in the power system or other components and improve the safety factor.
• How does the SAACKE FLS 09 UV-5 R2 flame detector differ from other flame detectors?

Q: How does the SAACKE FLS 09 UV-5 R2 flame detector differ from other flame detectors

• Unique Detection Principle and Technology: It is a UV – type flame detector, which detects the UV light generated by the flame based on the UV – sensitive components. Compared with infrared flame detectors, it has a higher sensitivity to UV light and can respond more quickly to the presence of flames, and is more suitable for occasions that require a rapid response to flame information. Moreover, SAACKE flame detectors adopt digital flame evaluation, which is suitable for the variable – type adjustment of all fuels, while ordinary flame detectors may have limitations in fuel adaptability.
• Higher Environmental Adaptability: The SAACKE FLS 09 UV – 5 R2 has an IP65 protection level, which can effectively prevent dust and water ingress, and is suitable for use in harsh environments. In contrast, not all flame detectors have such a high – level protection performance, and some detectors may have reduced detection accuracy or even malfunction in dusty or humid environments.
• Stronger Applicability to Burner Equipment: This detector is suitable for all single – burner or multi – burner devices and can work continuously without power limitations of the burner. However, many ordinary flame detectors are only applicable to specific types of burners, and there are certain restrictions on the power of the burner.
• Excellent Anti – interference Ability: SAACKE’s (explosion – proof type) red – ultraviolet composite flame detector uses multi – infrared sensing technology (MIR) and composite detection technology, with a dual – channel flame sensor design. One channel uses a UV flame sensor that is not sensitive to sunlight, and the other channel uses an infrared sensor operating in a specific flame radiation center frequency band as a confirmation sensor. Through the dual detection of the two sensors, the detection reliability is maximized, which is better than that of some single – channel ordinary flame detectors in anti – interference ability.
• Lightweight and Easy to Install: Weighing about 430 grams, it is relatively lightweight, which provides convenience for installation and is suitable for a variety of installation scenarios. In contrast, some flame detectors may be large and heavy, with higher requirements for the installation location and installation method.

Q: Does the SAACKE FLS 09 UV-5 R2 flame detector require regular calibration?

The SAACKE FLS 09 UV – 5 R2 flame detector requires regular calibration. In order to ensure the accuracy of the flame detector, it is necessary to calibrate it regularly. The calibration frequency depends on the requirements of the detector and the usage environment.

It is recommended to calibrate at least once a year. For those used in corrosive, high – temperature or high – dust environments, more frequent calibration may be required
