Description

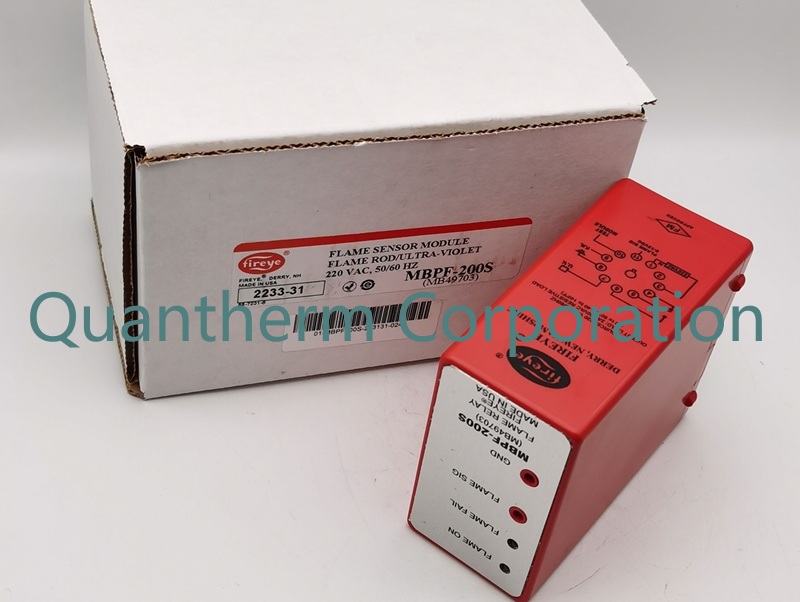

The Fireye Flame Sensor Module MBPF 200S (MB49703) is a single – channel flame detection device. It is used to detect the presence of furnace flames, providing display indications and switch – output signals.
Fireye Flame Detection Sensor Module MBPF 200S
It can operate on a 120VAC or 220VAC, 50/60Hz power supply. This module can be used alone or as a component of a combustion management system, and it is compatible with Fireye ultraviolet optical probes or combustion rod probes. It has an FM approval, ensuring its compliance with relevant safety standards.
The MBPF 200S is equipped with a flame LED display, which can intuitively show the flame status. It also has an analog output test point, allowing for the direct reading of the flame signal.
The module can be panel – mounted or DIN – rail mounted, and it has the function of remote connection test, which is convenient for installation and maintenance.
The MBPF 200S’s output load is 2A, 250VAC resistive load, and it can work in the temperature range of – 40 to 60 °C ( – 40 to 140 °F ).
