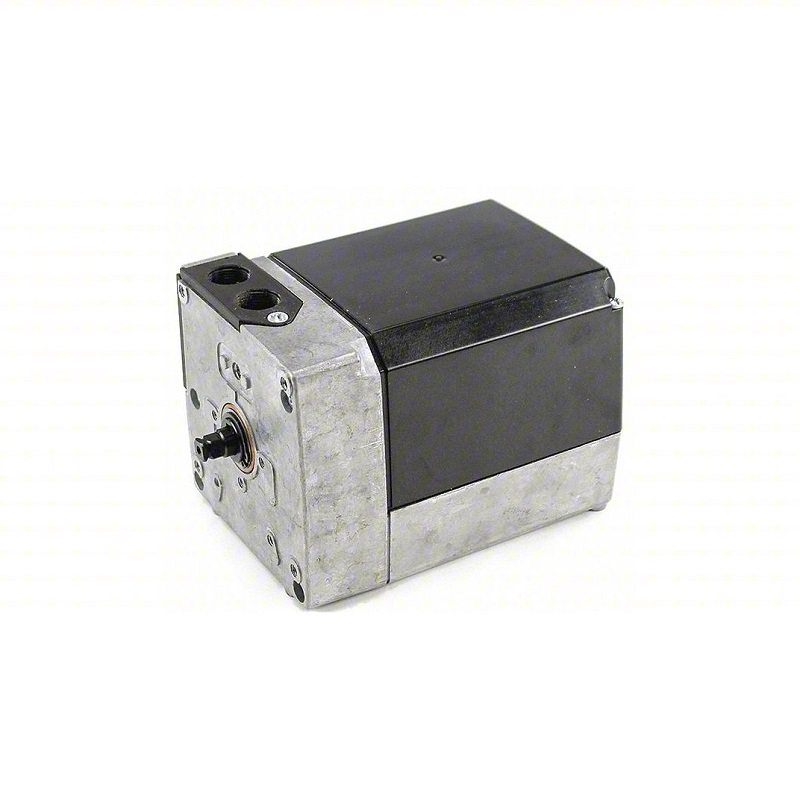

The characteristics, advantages, and evaluations in different application scenarios of the Siemens SQM50.424A2Z3 damper actuator:
Charateristics
- Powerful torque: It can provide a torque of up to 40 Nm, which is suitable for driving gas and air dampers of medium – to – large – sized burners.
- Adjustable running time: The running time is between 10 s and 90 s, which can meet the needs of different working conditions.
- Convenient structure and installation: It is equipped with a self – locking synchronous motor and an adjustable cam. The gear – shaft housing is made of die – cast aluminum and has 4 cable – entry holes. It can be equipped with 1 or 2 shafts, and the shafts are replaceable or detachable. The front end of the drive shaft can be smoothly mated with the transmission mechanism, which is fixed by 4 M5 threaded holes.
- Position indication function: It has internal and external position indication functions, which is convenient for users to quickly locate and understand the equipment status. It can also be equipped with an electronic module for proportional – regulating design, which can measure continuous signal feedback and control.
Advantages
- High reliability: The self – locking synchronous motor ensures the stable operation of the actuator. The die – cast aluminum housing and IP54 – rated shaft bearings provide good protection, which can prevent water and dust from entering and improve the service life of the actuator.
- Good adaptability: The power supply voltage of the actuator can work stably in the range of 230V – 15% + 10%, and the frequency can adapt to different environments of 50HZ or 60HZ, reducing the risk of malfunctions caused by power supply problems.
- Convenient operation and adjustment: The adjustable cam and the terminal and switch provided for easy adjustment make the operation and maintenance of the actuator more convenient. Users can manually adjust the cam according to actual needs to achieve accurate control.
Evaluations in Different Application Scenarios
- Combustion system: It is mainly used in the air – fuel ratio control of medium – to – large – sized fuel – or gas – fired burners in boilers. It can accurately control the opening and closing of dampers, adjust the air – fuel ratio, improve the combustion efficiency and energy – saving effect, and has a good performance in ensuring the stable operation of the combustion system and reducing emissions.
- HVAC system: It can be used in the ventilation and air – conditioning systems of buildings to adjust the air volume and air distribution, so as to achieve the purpose of indoor temperature control and air quality improvement. It has the advantages of accurate control and low noise in the HVAC system, which can improve the comfort of the indoor environment.
FAQs
Can the Siemens SQM50.424A2Z3 damper actuator be integrated with other systems or components?
Yes, the Siemens SQM50.424A2Z3 damper actuator can be integrated with various systems or components, and here’s how:
Integration with Burner Control Systems
- The SQM50.424A2Z3 is designed to work seamlessly with medium – to – large – sized burner control systems. It can receive control signals from the burner management system (BMS) to precisely adjust the position of the gas and air dampers.
This integration ensures accurate control of the air – fuel ratio, optimizing combustion efficiency and reducing emissions. For example, in a boiler system, the BMS can send signals to the damper actuator based on the required heat output, and the actuator will adjust the damper openings accordingly to maintain the optimal combustion conditions.
Connectivity with Building Automation Systems (BAS)
- The SQM50.424A2Z3 actuator can be integrated with BAS through appropriate communication protocols. It can provide real – time information about the damper position and operating status to the BAS, allowing for centralized monitoring and control.
The BAS can then use this information to optimize the overall energy consumption and operation of the building’s heating, ventilation, and air – conditioning (HVAC) systems. For instance, if the BAS detects a change in the building’s temperature requirements, it can send commands to the SQM50.424A2Z3 to adjust the damper positions in the HVAC system to maintain the desired indoor climate.
Compatibility with Other Siemens Components
- As part of the Siemens product family, the SQM50.424A2Z3 is compatible with other Siemens components, such as sensors and controllers. It can work together with Siemens – made temperature sensors, pressure sensors, and controllers to form a complete and integrated control system.
This compatibility simplifies the system design and integration process, as all components are designed to work harmoniously with each other, reducing the risk of compatibility issues and ensuring reliable operation.
Are there any accessories or additional components needed for integration?
Yes, when integrating the Siemens SQM50.424A2Z3 damper actuator with other systems or components, the following accessories or additional components may be needed:
- Communication Modules: If it needs to be connected to a building automation system or other controllers through specific communication protocols such as Modbus or BACnet, a corresponding communication module may be required. This module enables the actuator to exchange data with other devices in the network.
- Sensors: To achieve more accurate control, additional sensors may be needed. For example, a temperature sensor can be used to monitor the temperature of the combustion chamber or the air duct, and a pressure sensor can measure the pressure in the gas or air pipeline. The actuator can adjust the damper position based on the data from these sensors.
- Mounting Brackets and Connectors: Depending on the installation location and the connection method with other components, appropriate mounting brackets and connectors may be necessary. These ensure a secure and stable connection between the actuator and the damper, as well as with other related equipment.
- Terminal Blocks: Terminal blocks are used to connect the wires of the actuator to the power supply and other control devices. They provide a convenient and reliable way to make electrical connections.
- Electronic Modules for Specific Functions: If the application requires advanced features such as proportional – regulating control or continuous signal feedback, an electronic module designed for these functions may need to be added. This module can enhance the performance and functionality of the actuator in specific integration scenarios.
Can the Siemens SQM50.424A2Z3 damper actuator be remotely monitored and controlled?
Yes, the Siemens SQM50.424A2Z3 damper actuator can be remotely monitored and controlled, and the following are the common methods:
Via Building Automation Systems (BAS)
- The actuator can be integrated into a BAS through communication protocols like Modbus or BACnet. Once connected, the BAS can send control commands to the actuator to adjust the damper position and receive real – time status information, including the current position of the damper, whether the actuator is operating normally, and any error messages. This allows operators to remotely monitor and control the actuator from a central control station.
Using Siemens – Specific Software and Platforms
- Siemens provides dedicated software and platforms for its industrial automation and building technology products. The SQM50.424A2Z3 can be configured and managed through these software tools. For example, operators can use the software to set up parameters, monitor the actuator’s performance, and issue control commands via a computer or a mobile device connected to the same network.
With the Help of Additional Communication Devices
- If the installation site has a wireless communication infrastructure, additional wireless communication devices can be used to enable remote monitoring and control. These devices can transmit the actuator’s data to a remote location and receive control signals in return. This is particularly useful in applications where it is inconvenient to lay cables or when remote access from a mobile device is required.
