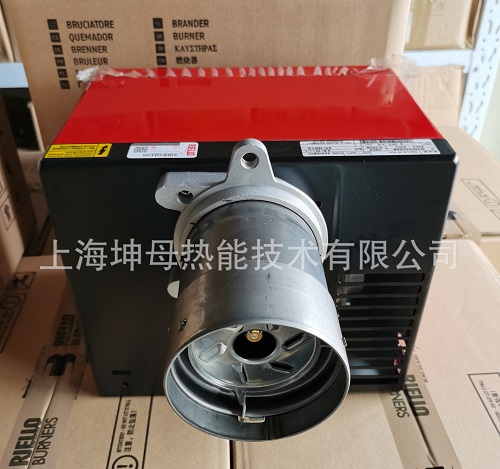

+8613906047998The Riello 40G10 one-stage light oil burner is a product designed for home heating, featuring high-quality components and compliance with European standards.
Parameters, performance, and application scenarios:
Parameters
- Thermal Power: The thermal output is 54-120 kW, equivalent to 4.5 – 10 kg/h.
- Fuel: It uses light oil, with a maximum viscosity of 4 – 6 mm²/s at 20 °C.
- Electrical Supply: It adopts single – phase power, 220 V±10% – 15%, 60 Hz. The motor run current is 1.1 A, with a speed of 3300 rpm (345 rad/s), and the capacitor is 2.5 mf.
- Ignition Transformer: The secondary voltage of the ignition transformer is 8 kV, and the current is 16 mA.
- Pump Pressure: The pump pressure range is 8 – 15 bar.
- Absorbed Electrical Power: The electrical power is 0.2 kW. Protection Level: It meets the IP40 protection level specified in EN 60529.
Performance
- High – efficiency Combustion: It can achieve a thermal power output of 54 – 120 kW, providing sufficient heat for heating equipment, which is suitable for different heating requirements. The reasonable design of the combustion head and the adjustment of the air – fuel ratio ensure efficient combustion of fuel, reducing energy consumption.
- Stable Operation: Using high – quality components, it has good reliability. The motor and pump have stable performance, which can ensure the long – term stable operation of the burner. It also has a certain adaptability to fuel quality and power supply fluctuations, and is less affected by the external environment.
- Low Noise: In the development process, special attention is paid to reducing noise. Through the optimized design of the fan and combustion structure, it can operate quietly during operation, reducing the impact on the surrounding environment.
- Easy to Adjust and Maintain: It is convenient for installation, adjustment and maintenance4. Users can adjust the pump pressure, combustion head and air damper opening according to actual needs to achieve the best combustion effect. At the same time, the modular design of the burner makes the maintenance work more convenient, which is conducive to reducing the maintenance cost and downtime.
Application Scenarios
- Home Heating: It is mainly used for home heating systems, which can be matched with various types of boilers to provide warm water for radiators or under – floor heating systems, ensuring the comfort of the living environment in winter.
- Small – scale Commercial Places: It can also be applied to some small – scale commercial places, such as small – scale offices, cafes, and restaurants, to meet their heating and hot water needs.
- Small – capacity Boilers: Suitable for small – capacity boilers with a nominal output ≤ 400 kW, which can be used for heating and providing sanitary hot water. Whether it is a newly installed boiler or a replacement for an old – fashioned boiler, it can adapt well.
